Crawlspaces – Garages – Enclosures – Elevated on Pilings – Detached Building – Commercial Buildings
Smart Vent – 20 + Years of Flood Venting Technology
Flood Vents protect your foundation by allowing bidirectional water flow that relieves hydrostatic pressure. Come visit our showroom and True Value Hardware store located at 217 West Montauk Highway in Lindenhurst to speak with a member of our team or give us a call at 631-226-6666.
Dual Function

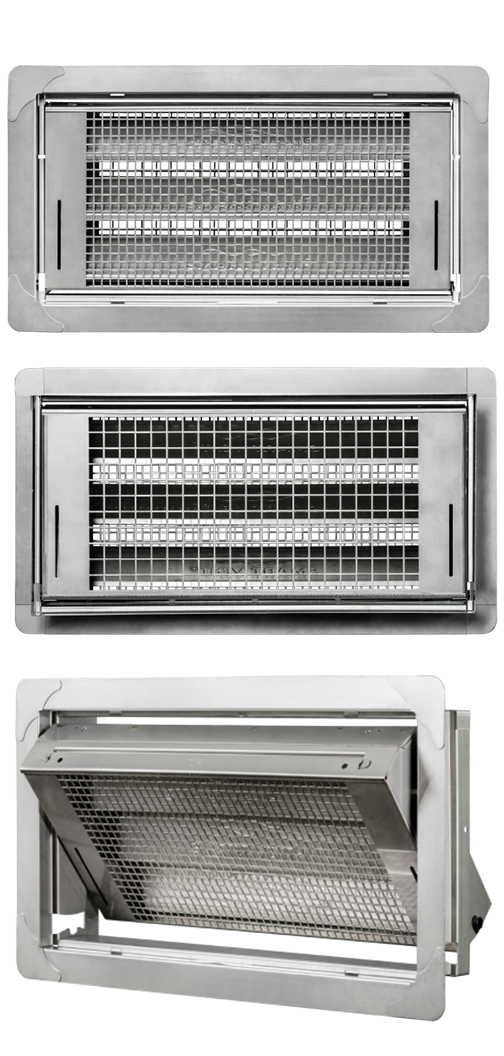

Dual-Function Smart Vent
Model: 1540-510
Flood Coverage
200 sq.ft.
Air Ventilation
51 sq. in.
Vent Size
16 “w x 8″h x 3″d
Rough Opening
16.25″w x 8.25″h
Available Colors
Stainless Steel, White, Black, Gray, Wheat

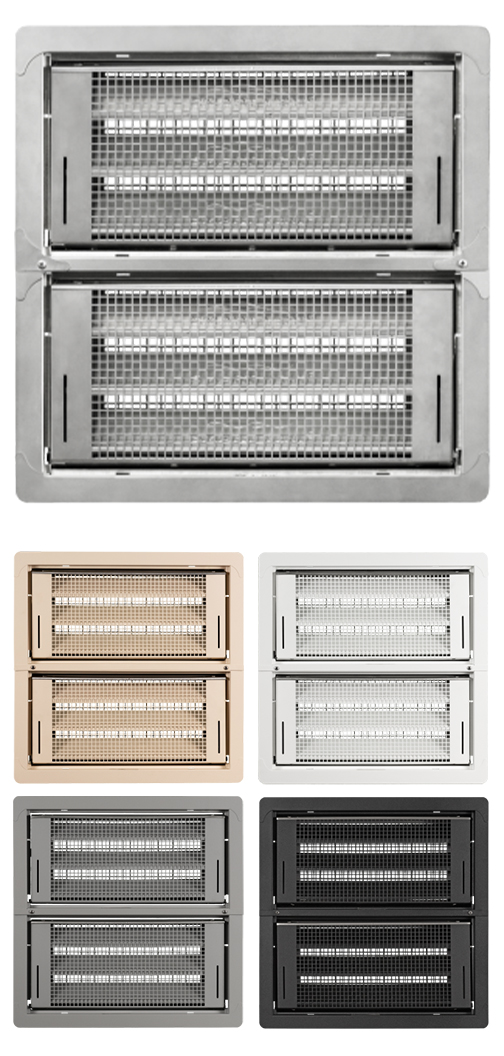

Dual-Function Smart Vent – Stacker
Model: 1540-511
Flood Coverage
400 sq.ft.
Air Ventilation
102 sq. in.
Vent Size
16″w x 16″h x 3″d
Rough Opening
16.25″w x 16.375″h
Available Colors
Stainless Steel, White, Black, Gray, Wheat

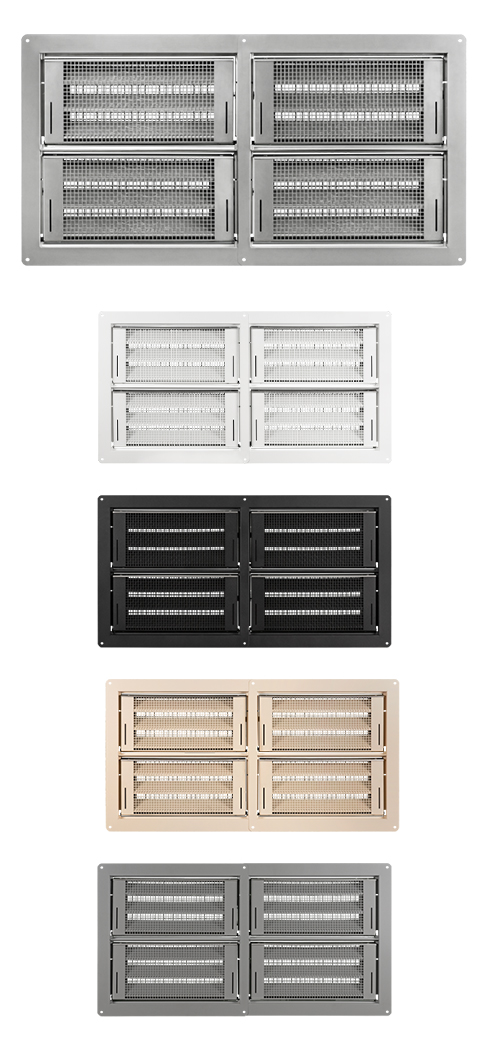

Dual-Function Multi-Frame (2×2)
Model Number
1540-150202E (1540-0039)
Flood Coverage
800 sq. ft.
Air Ventilation
204 sq. in.
Vent Size
32.5″w x 16″h x 3″d
Rough Opening
33″w x 16.375″h
Available Colors
Stainless Steel, White, Black, Gray, Wheat

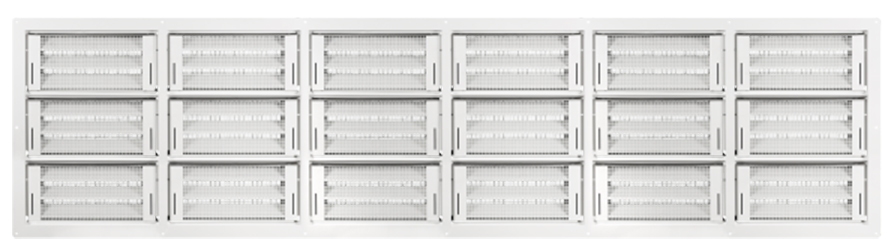

Dual-Function Custom Multi-Frame
Flood Coverage
Up to 3,600 sq. ft.
Air Ventilation
Up to 765 sq. in.
Vent Size
Varies
Rough Opening
Varies
Available Colors
Powder Coat Options
Insulated

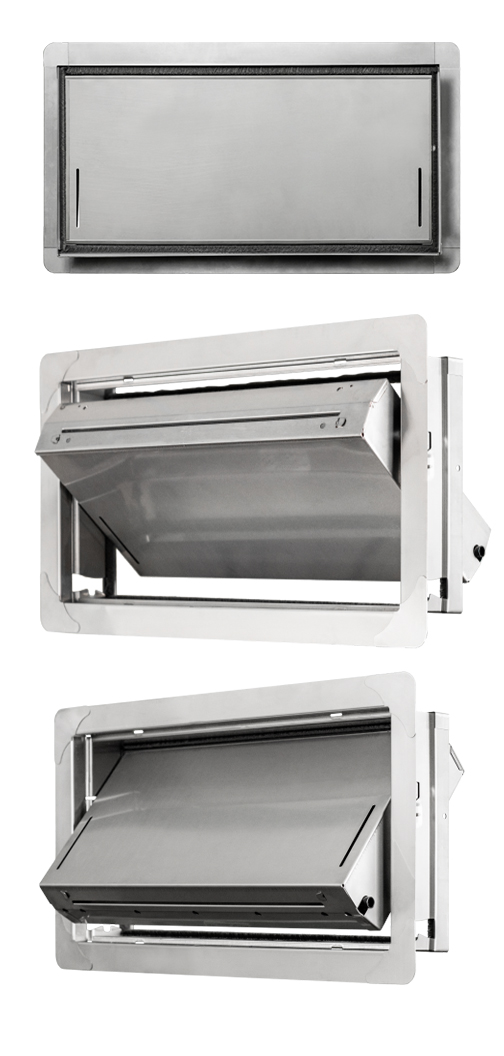

Insulated Flood Vent
Model: 1540-520
Flood Coverage
200 sq.ft.
Air Ventilation
N/A
Vent Size
16 “w x 8″h x 3″d
Rough Opening
16.25″w x 8.25″h
Available Colors
Stainless Steel, White, Black, Gray, Wheat

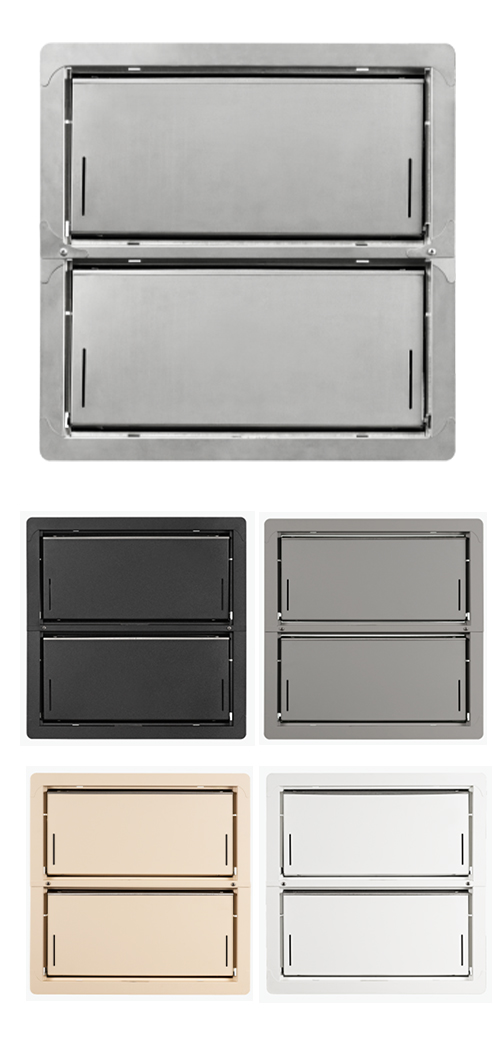

Insulated Flood Vent – Stacker
1540-521
Flood Coverage
400 sq.ft.
Air Ventilation
N/A
Vent Size
16″w x 16″h x 3″d
Rough Opening
16.25″w x 16.375″h
Available Colors
Stainless Steel, White, Black, Gray, Wheat

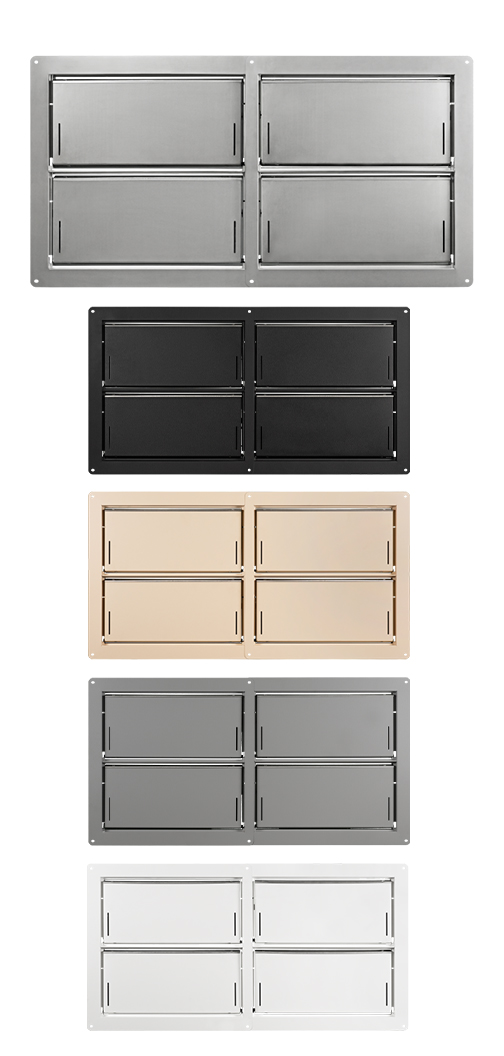

Insulated Multi-Frame (2×2)
Model Number
1540-150202E (1540-0239)
Flood Coverage
800 sq. ft.
Air Ventilation
Vent Size
32.5″w x 16″h x 3″d
Rough Opening
33″w x 16.375″h
Available Colors
Stainless Steel, White, Black, Gray, Wheat

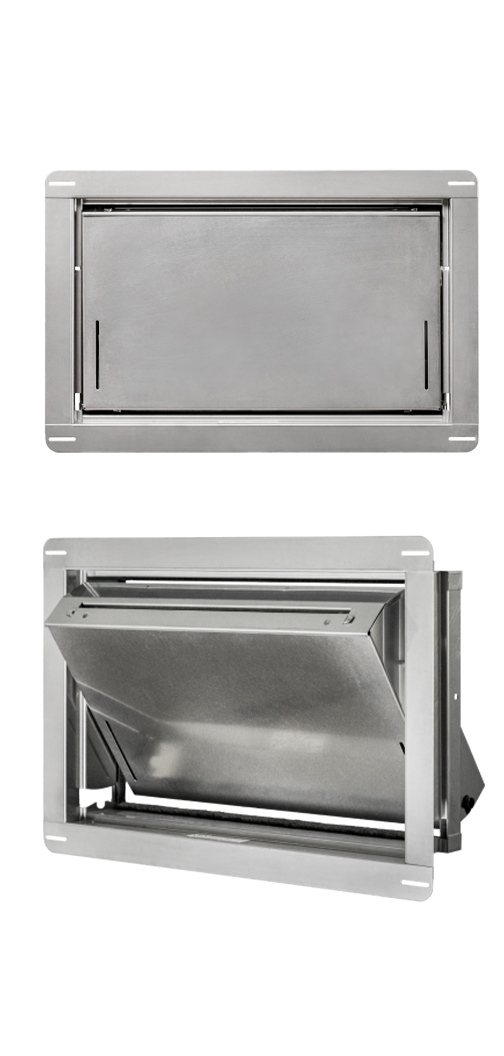

Insulated Flood Vent – Wood Wall
1540-570
Flood Coverage
200 sq.ft.
Air Ventilation
N/A
Vent Size
14.5″w x 8.5″h x 3″d
Rough Opening
14.5″w x 8.75″h
Available Colors
Stainless Steel, White, Black, Gray, Wheat

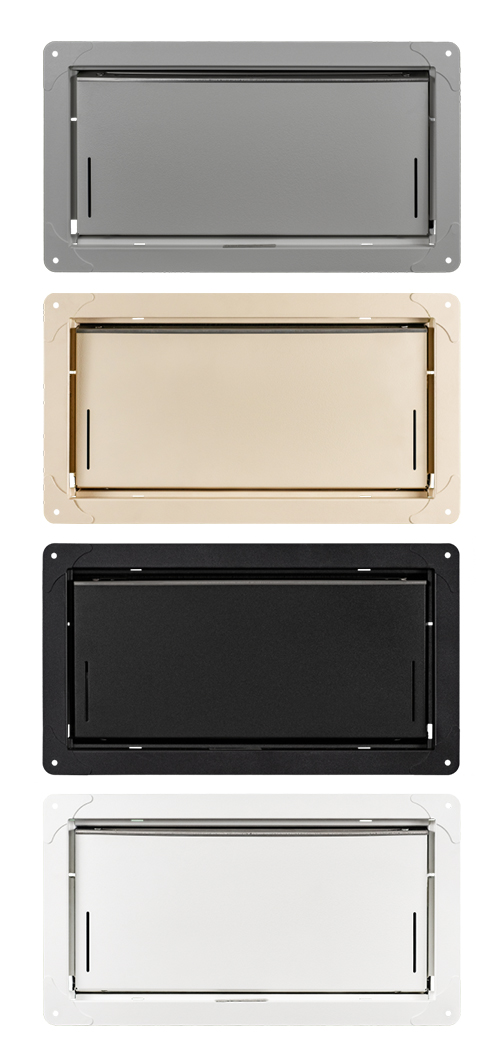

Insulated Flood Vent – Garage Door (Wide)
Model Number
1540-524
Flood Coverage
200 sq.ft.
Air Ventilation
N/A
Vent Size
16″w x 8″h x 3″d
Rough Opening
16″w x 8″h
Available Colors
White, Black, Gray, Wheat

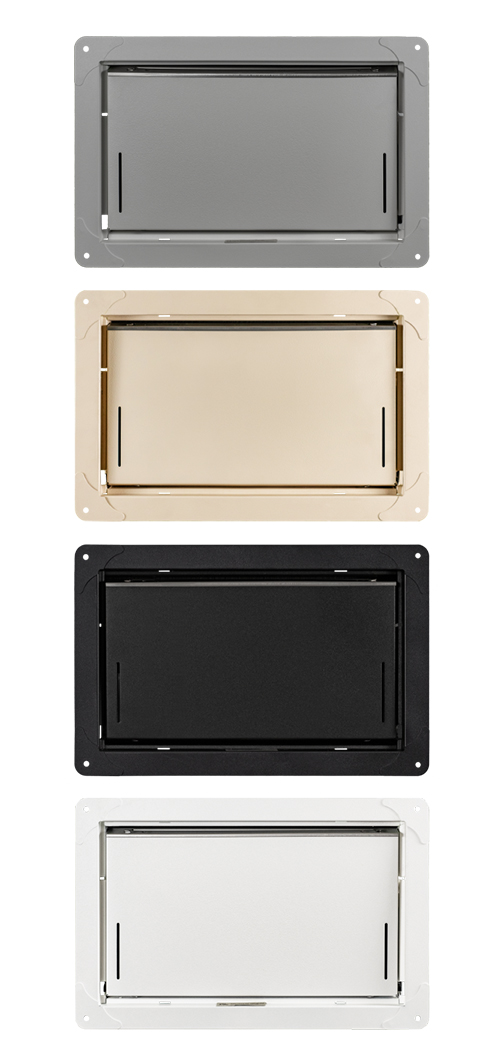

Insulated Flood Vent – Garage Door (Tall)
1540-574
Flood Coverage
200 sq.ft.
Air Ventilation
N/A
Vent Size
14.5″w x 8.5″h x 3″d
Rough Opening
14 1/2″w x 8 3/4″h
Available Colors
White, Black, Gray, Wheat

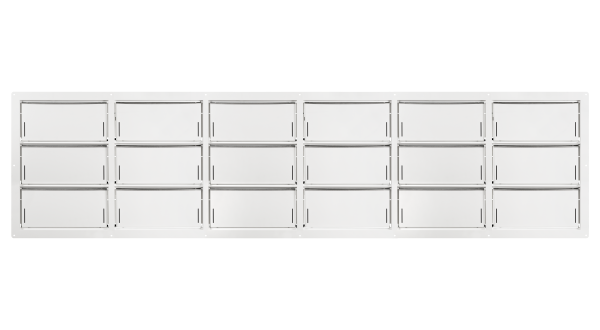

Insulated Custom Multi-Frame
Model Number
Varies
Flood Coverage
Up to 3,600 sq. ft.
Air Ventilation
R-Value: 8.34
Vent Size
Varies
Rough Opening
Varies
Available Colors
Powder Coat Options
Protect your foundation.
Smart Vent – Engineered Flood Vents
Aller’s Lumber Compan offers Smart Vents – these flood Vents protect your foundation by allowing bidirectional water flow that relieves hydrostatic pressure. Can be used for Residential – Crawlspaces, Garages, Enclosures, Elevated on Pilings, Detached Buildings, Walkout Enclosures, or Commercial Buildings.
